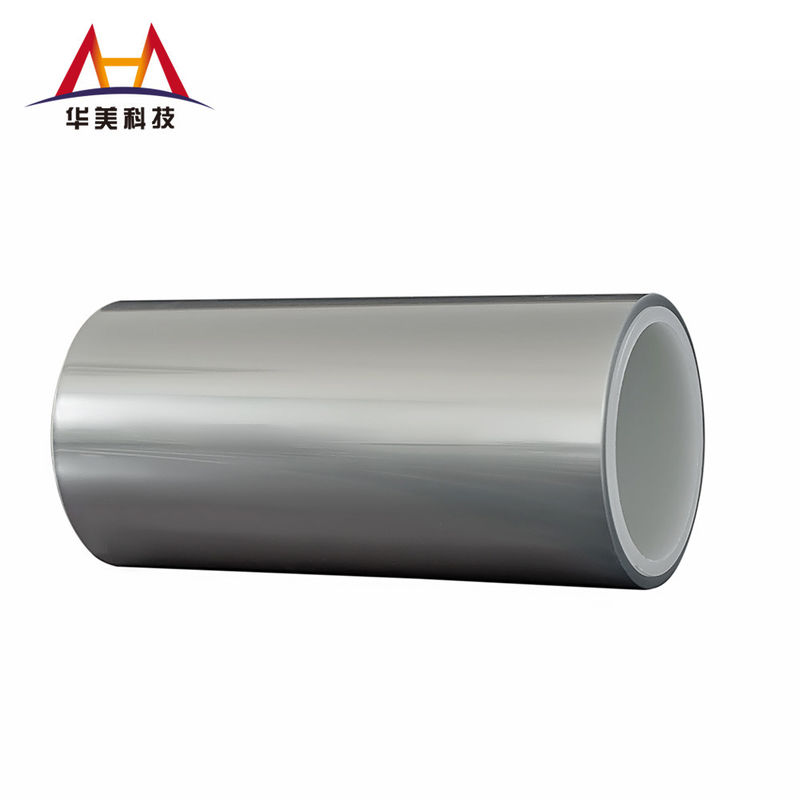

PET Silicone Release Films Medical Device Adhesive Backing 5g/In

Name: PET Silicone Release Films Medical Device Adhesive Backing 5g/In
Brand: Jiangyin Huamei Photoelectric Science and Technology Co., Ltd.
SKU: Silicone Release Film
Price: 0.24 USD
Availability: InStock

Brand Name:	HUAMEI
Model Number:	Silicone Release Film
MOQ:	6200 square meter
Price:	0.24-1.64/㎡
Payment Terms:	L/C,D/P
Supply Ability:	300000m everyday

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Name:

Silicone Release Films

Raw Material:

PET

Thickness:

25/50/75/100/125

Color:

Transparent

Release Force:

5 Or Customized

Width:

Customized

Length:

Customized

Residual Adhesion Rate:

≥85

Packaging Details:

Wrapping Film Protection+Carton Package+Tray Package

Highlight:

PET Silicone Release Films

Medical Device Adhesive Backing

Silicone Release Films 5g/In

Product Description

5g/in OCA PET Silicone Release Film Medical Device Adhesive Backing

Product Introduction

This product uses optical grade PET as the base material and coats its surface with an ultra-thin OCA-formed release substance. It is suitable for optical film and other fields, and is also widely used in die-cutting products, adhesive products, light curing and heat curing products, which play a good role in isolation and protection.

Product Features

Producing in the 100-level clean environment, with high cleanness.
Uniform coating, flat film surface, no rainbow pattern, etc. and strict control of film surface defects.
High residual adhesion rate (≥85%), no performance impact on the bonding material, non-polluting.
Base Material: High-quality PET (polyester) film with excellent mechanical strength, chemical resistance, and dimensional stability.
Anti-Static Treatment: Prevents dust adsorption during precision die-cutting.

Product Structure

Product Use

Optical Clear Adhesive (OCA) Films: The primary use of OCA PET silicone release film is in the manufacturing of OCA films. These films are used in touchscreens, displays, and other optical applications where clarity and adhesion are crucial.
Touchscreens and Displays: OCA films made with PET silicone release film are used in smartphones, tablets, and other electronic devices with touchscreens.
Medical Devices: OCA films are also used in medical devices where clear adhesion is required.

Product Packaging

1. Products are generally used by cardboard tray, nude tray packaging;

2. All cartons of products have certificate, packing list, each tray should have a list of products;

3. Our products can also be packaged according to the requirements of the user agreement.

Product Performance

Project	Eigenvalues
Membrance	Raw materials
Color	Transparent
Width(mm)	Customized according to user needs
Length(mm)	Customized according to user needs
Thickness(μm)	25/50/75/100/125
Release Force(g/in)	5
Residual adhesion rate(%)	≥ 85
Spareting treatment	Single sided treatment
Antistatic treatment	Single sided/Double sided treatment
Surface resistivity(Ω*m)	10^5-10^9
Conventional range from the type of power	4 ±1,7±2,10±3,15±5,20±5,25±5,30±5,35±5,45±10,55±10,75±10

FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with over 15 years experience.

Q: What about the lead time for mass production?

A: 7-14 days.

Q: How can I get the free sample?

A: We provide the free sample. Please tell us which model you want and pay the freight, then we will ship out the samples.

Q: What about the payment?

A: L/C, D/P.

Q: How can we grantee quality?

A: We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines, tensile testing technology, ROHS detectors, and constant temperature and humidity environmental testers.
