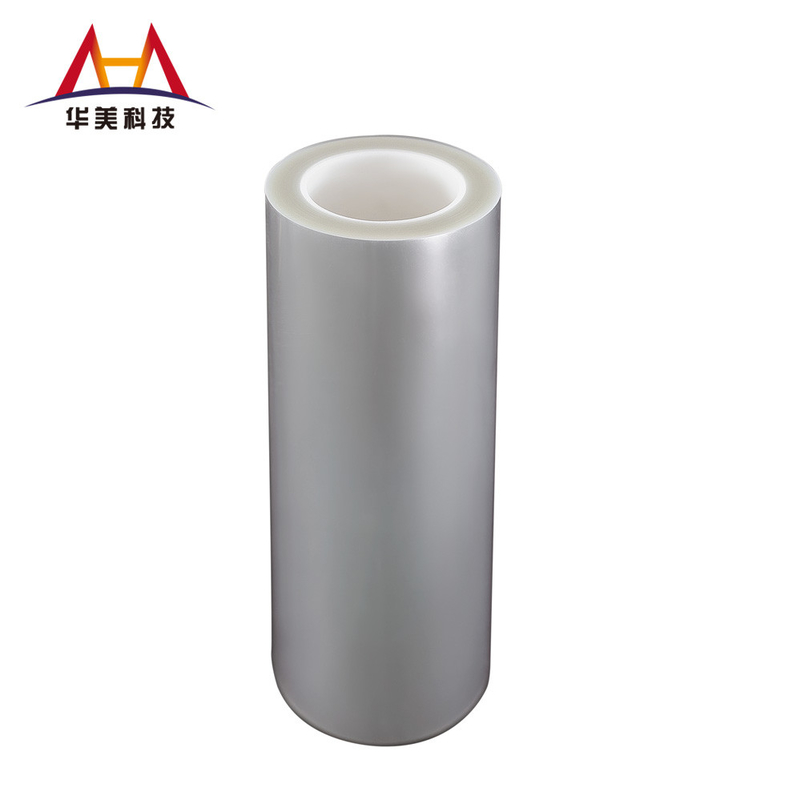

3g/In MLCC Release Film Single Sided / Double Sided Film Release Liners

Name: 3g/In MLCC Release Film Single Sided / Double Sided Film Release Liners
Brand: Jiangyin Huamei Photoelectric Science and Technology Co., Ltd.
SKU: Silicone Release Film
Price: 0.24 USD
Availability: InStock

Brand Name:	HUAMEI
Model Number:	Silicone Release Film
MOQ:	6200 square meter
Price:	0.24-1.64/㎡
Payment Terms:	L/C,D/P
Supply Ability:	300000m everyday

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Name:

MLCC Release Film

Raw Material:

PET

Color:

Customized According To User Needs

Width:

Customized According To User Needs

Length:

Customized According To User Needs

Spareting Treatment:

Single/Double Sided Treatment

Release Force:

3 Or Customized

Residual Adhesion Rate:

≥85

Packaging Details:

Wrapping Film Protection+Carton Package+Tray Package

Highlight:

3g/in mlcc pet silicone release film

Single Sided Film Release Liners

Double Sided Film Release Liners

Product Description

3g / in MLCC PET Silicone Release Film MLCC-specific PET Release Film

Product Attributes

Attribute	Value
Name	MLCC Release Film
Raw Material	PET
Color	Customized according to user needs
Width	Customized according to user needs
Length	Customized according to user needs
Spareting treatment	Single/Double sided treatment
Release Force	3 or customized
Residual adhesion rate	≥85

Product Description

3g / in MLCC PET Silicone Release Film MLCC-specific PET Release Film

Product Introduction

This product is used as a base material of high flatness, high temperature resistance PET, coated on the surface of the thin layer of release substance MLCC formulations. Mainly used in MLCC tape coating.

Product Features

Producing in the 1000-level clean environment, with high cleanness
The coating is uniform and the film surface is flat with minimal tolerance, making the subsequent process easy to process
High residual adhesion rate (≥85%), no performance impact on the bonding material, non-polluting
High-Quality PET Base Film: Made from bidirectional-stretched polyester (BOPET), offering superior mechanical strength, rigidity, and tear resistance for stable handling during high-speed production
Compliance: Meets RoHS/REACH requirements and semiconductor-grade cleanliness standards

Product Structure

Product Use

Ceramic Layer Transfer in MLCC Production

Primary Role: Acts as a carrier substrate during the ceramic slurry casting process. The film holds the ceramic slurry in place while solvents evaporate, forming uniform ceramic green sheets.

Key Requirement: High smoothness (≤0.2μm defects) to ensure defect-free ceramic layers, critical for high-capacity MLCCs.

Post-Processing & Recycling

Punching Protection: Used as a buffer between MLCC stacks and molds during punching to prevent mechanical damage.

Reusability: Companies like TDK and Murata have implemented recycling programs for PET release films to reduce costs and environmental impact.

Product Packaging

Products are generally used by cardboard tray, nude tray packaging
All cartons of products have certificate, packing list, each tray should have a list of products
Our products can also be packaged according to the requirements of the user agreement

Product Performance

Project	Eigenvalues
Membrance	Raw materials
Color	Customized according to user needs
Width(mm)	Customized according to user needs
Length(mm)	Customized according to user needs
Thickness(μm)	25-188
Release Force(g/in)	3
Thermal Shrinkage rate	MD ≤1.5 TD ≤0.5
Surface roughness	Ra ≤25nm,Rz≤350nm
Residual adhesion rate(%)	≥ 85
Spareting treatment	Single/Double sided treatment
Conventional range from the type of power	4 ±1,10±3,15±5,20±5,25±5,35±5

FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with over 15 years experience.

Q: What about the lead time for mass production?

A: 7-14 days.

Q: How can I get the free sample?

A: We provide the free sample. Please tell us which model you want and pay the freight, then we will ship out the samples.

Q: What about the payment?

A: L/C,D/P.

Q: How can we grantee quality?

A: We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines, tensile testing technology, ROHS detectors, and constant temperature and humidity environmental testers.
