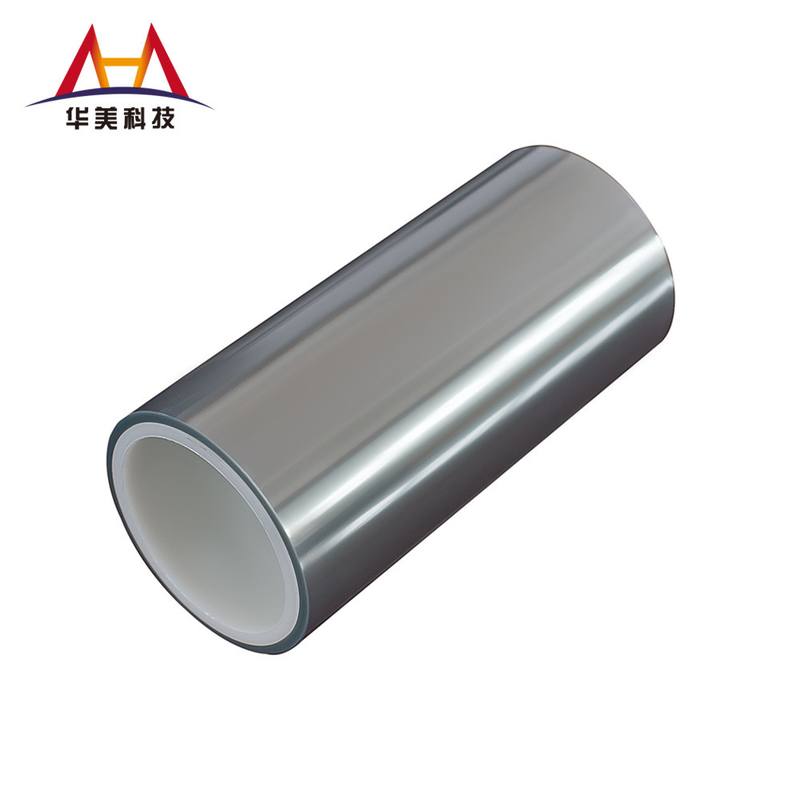

4g/In Silicone Coated PET Release Film High Temperature Resistant PET Release Liner

Name: 4g/In Silicone Coated PET Release Film High Temperature Resistant PET Release Liner
Brand: Jiangyin Huamei Photoelectric Science and Technology Co., Ltd.
SKU: فیلمی از سیلیکون
Price: 0.24 USD
Availability: InStock

نام تجاری:	HUAMEI
شماره مدل:	فیلمی از سیلیکون
موق:	6200 متر مربع
قیمت:	0.24-1.64/㎡
شرایط پرداخت:	L/C ، D/P
توانایی عرضه:	هر روز 300000 متر

اطلاعات دقیق

توضیح محصول

اطلاعات دقیق

محل منبع:

چین

نام:

فیلمی که با سیلیکون پوشانده شده است

درمان ضد استاتیک:

درمان یک طرفه/دو طرفه

رنگ:

شفاف

عرض:

با توجه به نیاز کاربر سفارشی شده است

طول:

با توجه به نیاز کاربر سفارشی شده است

نیروی آزاد:

4 یا سفارشی

میزان چسبندگی باقیمانده:

≥85

جزئیات بسته بندی:

بسته بندی محافظت از فیلم+بسته کارتن+بسته سینی

برجسته کردن:

4g/In Silicone Coated PET Release Film,High Temperature Resistant PET Release Liner,PET Release Liner 4g/in

High Temperature Resistant PET Release Liner

PET Release Liner 4g/in

توضیح محصول

4g/in OCA PET Silicone Release Film High Temperature Resistant OCA Liner

Product Introduction

This product uses optical grade PET as the base material and coats its surface with an ultra-thin OCA-formed release substance. It is suitable for optical film and other fields, and is also widely used in die-cutting products, adhesive products, light curing and heat curing products, which play a good role in isolation and protection.

Product Features

Producing in the 100-level clean environment, with high cleanness.
Uniform coating, flat film surface, no rainbow pattern, etc. and strict control of film surface defects.
High residual adhesion rate (≥85%), no performance impact on the bonding material, non-polluting.
Base Material: High-quality PET (polyester) film with excellent mechanical strength, chemical resistance, and dimensional stability.
Coating Composition: Silicone-based release layer containing ethylene-MQ silicone resin and fluorinated polysiloxane for controlled release force.

Product Structure

Product Use

Optical Clear Adhesive (OCA) Films: The primary use of OCA PET silicone release film is in the manufacturing of OCA films. These films are used in touchscreens, displays, and other optical applications where clarity and adhesion are crucial.
Touchscreens and Displays: OCA films made with PET silicone release film are used in smartphones, tablets, and other electronic devices with touchscreens.
Graphic Films: In the printing industry, OCA films are used for graphic applications where high clarity and adhesion are required.

Product Packaging

Products are generally used by cardboard tray, nude tray packaging
All cartons of products have certificate, packing list, each tray should have a list of products
Our products can also be packaged according to the requirements of the user agreement

Product Performance

Project	Eigenvalues
Membrance	Raw materials
Color	Transparent
Width(mm)	Customized according to user needs
Length(mm)	Customized according to user needs
Thickness(μm)	25/50/75/100/125
Release Force(g/in)	4
Residual adhesion rate(%)	≥ 85
Spareting treatment	Single sided treatment
Antistatic treatment	Single sided/Double sided treatment
Surface resistivity(Ω*m)	10^5-10^9
Conventional range from the type of power	4 ±1,7±2,10±3,15±5,20±5,25±5,30±5,35±5,45±10,55±10,75±10

FAQ

Are you a manufacturer or trading company?

We are a professional manufacturer with over 15 years experience.

What about the lead time for mass production?

7-14 days.

How can I get the free sample?

We provide the free sample. Please tell us which model you want and pay the freight, then we will ship out the samples.

What about the payment?

L/C, D/P.

How can we grantee quality?

We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines, tensile testing technology, ROHS detectors, and constant temperature and humidity environmental testers.
