Silicone Coated PET Release Film
Created with Pixso.

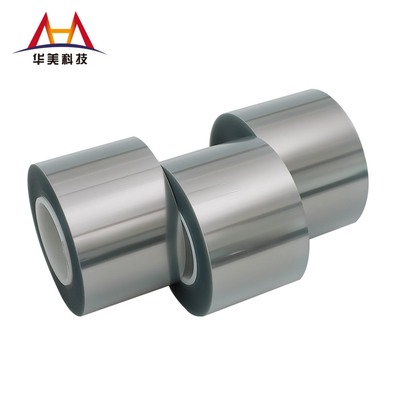

PET Silicone Release Film High Temperature Resistant OCA Film 25μM Optical Adhesive Protection

PET Silicone Release Film High Temperature Resistant OCA Film 25μM Optical Adhesive Protection

Brand Name: HUAMEI
Model Number: Silicone Release Film
MOQ: 6200 square meter
Price: 0.24-1.64/㎡
Payment Terms: L/C,D/P
Supply Ability: 300000m everyday
Detail Information
Place of Origin:
CHINA
Name:
Silicone Release Film
Raw Material:
PET
Spareting Treatment:
Single Sided Treatment
Length:
Customized According To User Needs
Thickness:
25 Or Customized
Release Force:
3-85
Residual Adhesion Rate(%):
≥85
Packaging Details:
Wrapping Film Protection+Carton Package+Tray Package
Highlight:

PET Silicone Release Film

,

High Temperature Resistant OCA Film

,

OCA Film 25μM

Product Description
25μm OCA PET Silicone Release Film High Temperature Resistant OCA Liner Optical Adhesive Protection
Product Introduction
This product uses optical grade PET as the base material and coats its surface with an ultra-thin OCA-formed release substance. It is suitable for optical film and other fields, and is also widely used in die-cutting products, adhesive products, light curing and heat curing products, which play a good role in isolation and protection.
Product Features
  • Produced in 100-level clean environment, with high cleanness
  • Uniform coating, flat film surface, no rainbow pattern, with strict control of film surface defects
  • High residual adhesion rate (≥85%), no performance impact on bonding material, non-polluting
  • Base Material: High-quality PET (polyester) film with excellent mechanical strength, chemical resistance, and dimensional stability
  • Coating Composition: Silicone-based release layer containing ethylene-MQ silicone resin and fluorinated polysiloxane for controlled release force
Product Structure
PET Silicone Release Film High Temperature Resistant OCA Film 25μM Optical Adhesive Protection 0
Product Use
  • Optical Clear Adhesive (OCA) Films: Primary use in manufacturing OCA films for touchscreens, displays, and other optical applications where clarity and adhesion are crucial
  • Touchscreens and Displays: Used in smartphones, tablets, and other electronic devices with touchscreens for bonding display layers without affecting clarity or touch sensitivity
  • Graphic Films: Used in printing industry for graphic applications requiring high clarity and adhesion
Product Packaging
  • Generally packaged in cardboard tray or nude tray packaging
  • All cartons include certificate and packing list, each tray has product list
  • Custom packaging available according to user requirements
Product Performance
Project Eigenvalues
Membrance Raw materials
Color Transparent
Width(mm) Customized according to user needs
Length(mm) Customized according to user needs
Thickness(μm) 25
Release Force(g/in) 3-85
Residual adhesion rate(%) ≥ 85
Spareting treatment Single sided treatment
Antistatic treatment Single sided/Double sided treatment
Surface resistivity(Ω*m) 10^5-10^9
Conventional range from the type of power 4 ±1,7±2,10±3,15±5,20±5,25±5,30±5,35±5,45±10,55±10,75±10
FAQ
Are you a manufacturer or trading company?
We are a professional manufacturer with over 15 years experience.
What about the lead time for mass production?
7-14 days.
How can I get the free sample?
We provide the free sample. Please tell us which model you want and pay the freight, then we will ship out the samples.
What about the payment?
L/C, D/P.
How can we guarantee quality?
We adopt advanced chemical and coating technology from Japan, and are equipped with equipment such as slitting machines, tensile testing technology, ROHS detectors, and constant temperature and humidity environmental testers.
